Rear Truck (Chorus)

• Axle height: 66mm
• Hanger width: 160-154-148-142mm adjustable through shims
• Shim width: 3mm x 1 & 6mm x 1 on each side of the axle
• Axle width: 228mm (~9") end to end
• Pivoting angle adjustable: 20-40 degrees
• Wheelbase offset: +1.5 inch (increase deck wheelbase by 1.5in)
• Forged 6061-T6 aluminium, followed by CNC milling, sandblasted anodized finish
• Wheel axles: Hollow 42CrMo alloy steel, double-butted, heat-treated, nickel-plated
• Kingpin: Hollow SCM435 alloy steel, double-butted, heat-treated, nickel-plated
• Mounting hardware: Nickel-plated steel
• Truck hole pattern: New School (/w extra 0.375" WB adjustment) & Old School
• Riser pads: 2mm, 3mm, 5mm, 10mm (20mm in total)
• Bushings: Riptide APS 85A, Roadside 15mm Cone / Deckside 19mm Tall Cone
• Cup washers: Precision CNC milled stainless steel.  Optimized for Riptide bushings

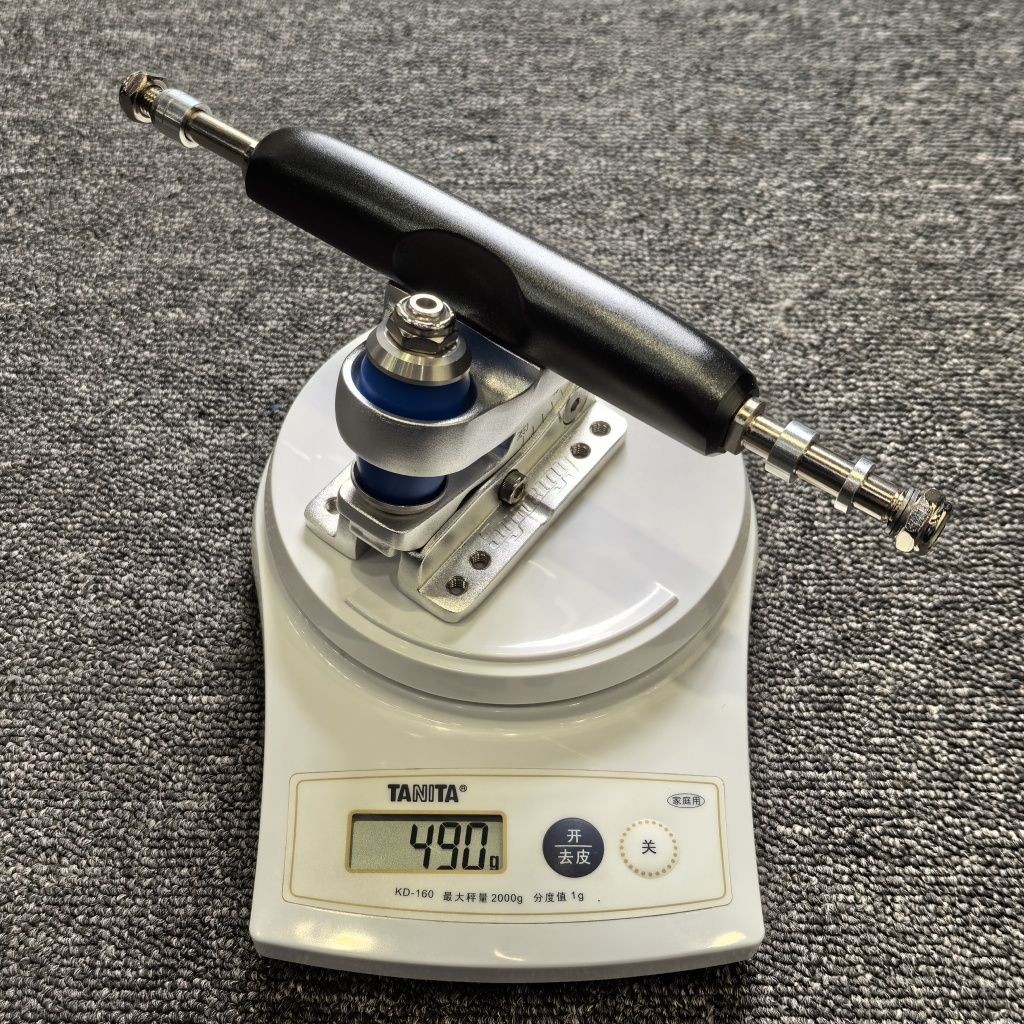

• Weight: ~490g
